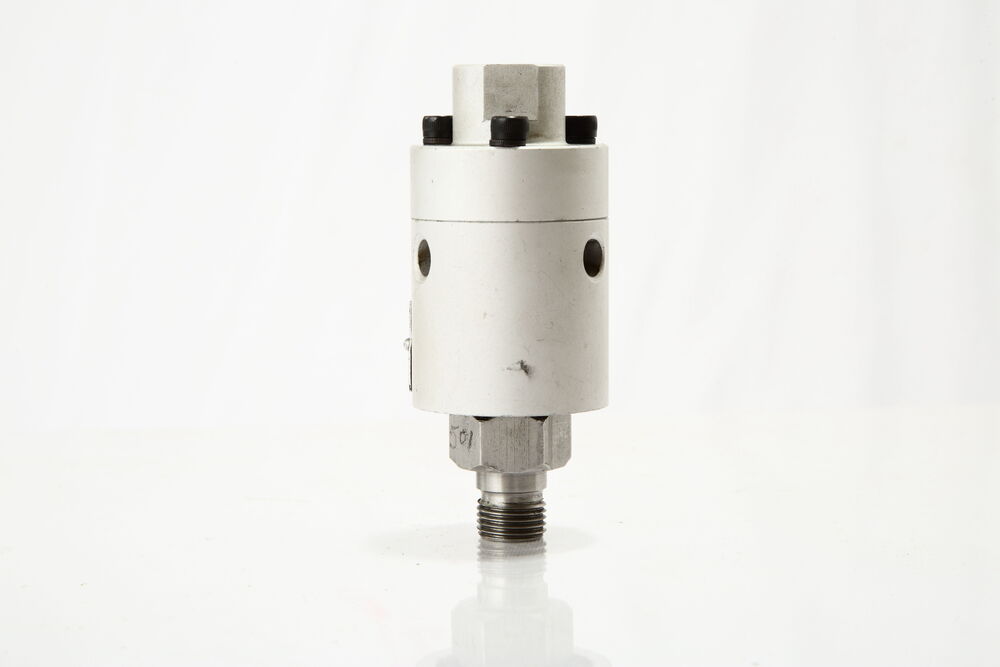

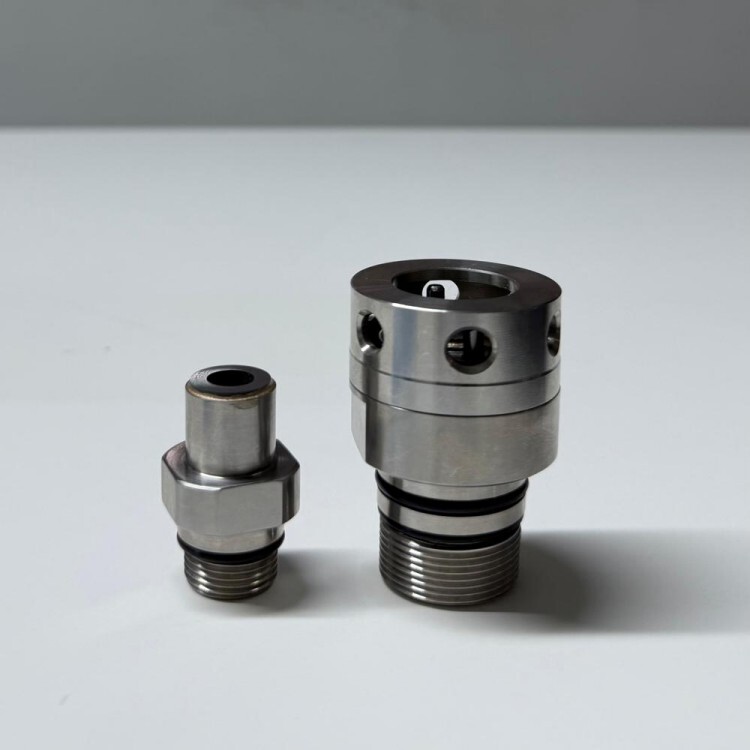

Bearing Less Rotary Union

Bearing Less Rotary Union Specification

Usage
Machine tool Applications

Working Presssure
120 bar

Corrosion Resistant
Non-Corrosive Material

Shape
Standard

Features
High Quality Min rpm 24000rpm and Max rpm-40000rpm

Connection Type
M16X1.5 LH and Others are also available

Diameter
54 Millimeter (mm)

Port Size
3/8

Material
Aluminum anodized body

Surface Finish
Anodized

Capacity
10000 Tons/year

Application
CNC spindle through coolant

Dimension (L*W*H)
DIA 54X132 LONG Millimeter (mm)

Thread Type
M16X1.5 LH and others are available

End Type
Spindle through coolant

Pressure Ratings
120

Material Grade
Aluminium

Product Type
Precision Rotary Unions

Grade
Standard

Pressure
High Pressure

Temperature
85 Celsius (oC)

Technics
Other

Connection
Male

Connector
Thread

Head Code
Hexagon

Size
M16X1.5LH

Color
Silver

Warranty
Yes

Usage Application
Gas pipe, Pneumatic connections, Hydraulic pipe

Bearing Less Rotary Union Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1000 Units Per Month

Delivery Time
4 Week

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
Protective net + Poly Bag + Plastic box external covering

Main Export Market(s)
Asia, Central America, Eastern Europe, Western Europe, Africa

Main Domestic Market
All India

Certifications
ISO 9001 :2015 Certified Co. IATF-16949 Certified co.

About Bearing Less Rotary Union

Rotary Union Bearing less type is precisely made and validated for last 9 years across India for various applications.

Heat treated aluminum anodized body and precisely well balanced stainless steel spindles ensures great performance and workmanship at any kind of work environment.

Bearing less rotary union is known for its cutting edge technology, achieves lowest vibration on spindle with high rpm and pressure, in this type simultaneous applications are possibe.

Super-precised lapped seal surfaces and its chemistry enhances the product life as well as leakage free performance. For longer life cycle J.K.Udyog deliberately using tungsten carbide to tungsten carbide sealing arrangement as our normal sealing arrangements.

Flatness of 2 Light band ensures the leakage free service life.

J.K.Udyog supplies well initialized rotary unions to start working immediately at the customer end.

Our well experienced engineering team are ready to cater any specific or specialized rotary applications right from Single-flow to 16 flow inlet to 16 flow outlet various needs of machining, metal cutting, work holding, indexing, rotating such simultaneous requirement in the machining industry. Hydraulic and Pneumatic work holding along with Air-seat arrangement are also available as per made to order basis.
