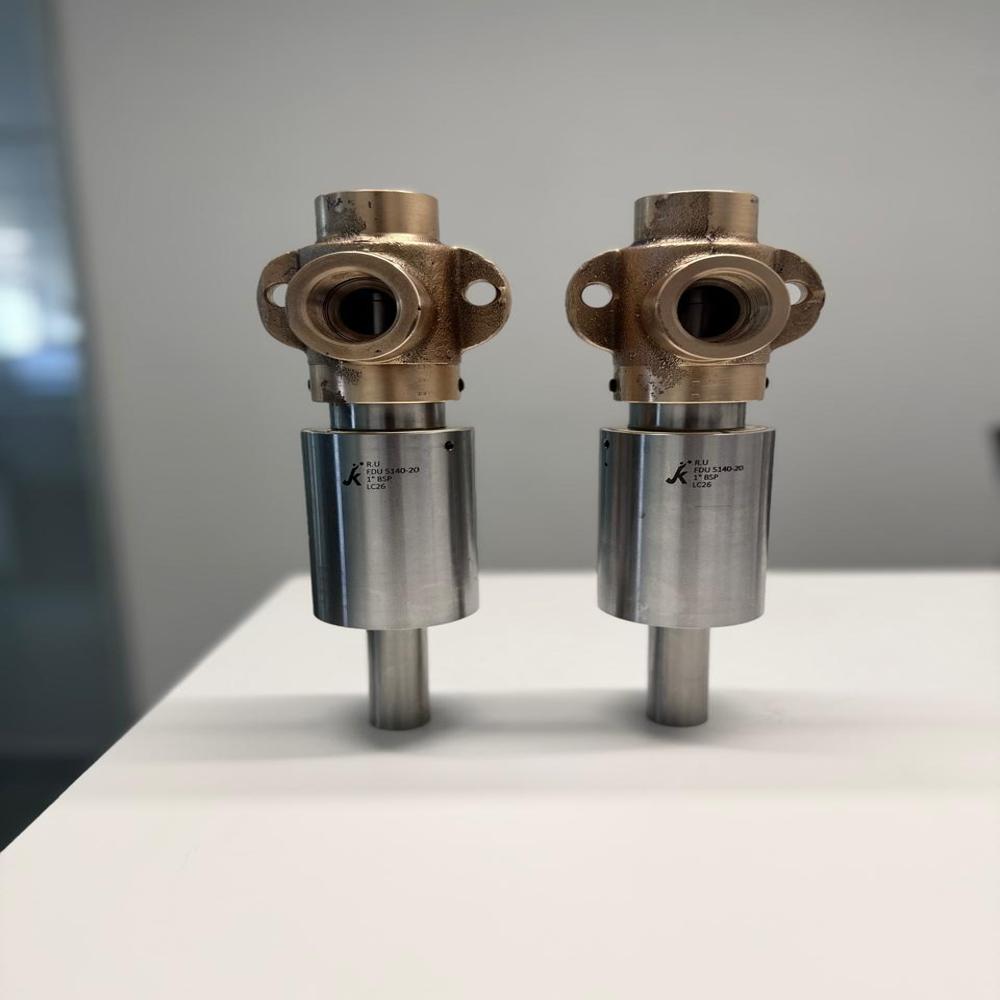

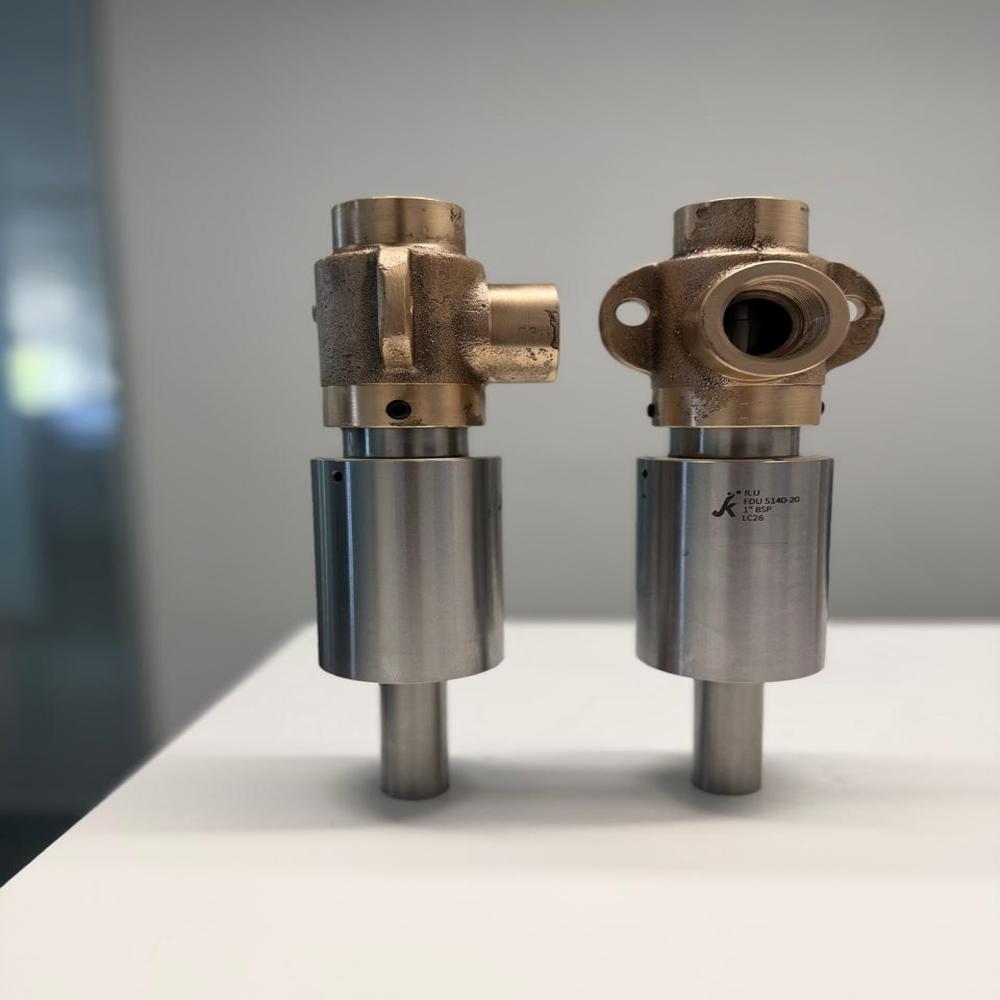

Flanged Thread Rotary Union

Flanged Thread Rotary Union Specification

Application
Agile reversible spindle rotation designed for high flow rate requirement

Diameter
54 Millimeter (mm)

End Type
Agile reversible spindle rotation

Capacity
10000 Tons/year

Working Presssure
120

Pressure Ratings
120

Corrosion Resistant
Non-Corrosive Material

Port Size
3/8" BSP/NPT

Material
Aluminum anodized body

Features
10000 rpm

Dimension (L*W*H)
DIA 54X132 LONG Millimeter (mm)

Fittings
Elbows

Material Grade
Aluminium

Surface Finish
Anodized

Thread Type
M16X1.5 LH and others are available

Connection Type
M16X1.5 LH and Others are also available

Shape
Standard

Usage
Machine tool Applications

Product Type
Precision Rotary Unions

Grade
Standard

Temperature
85 Celsius (oC)

Technics
Other

Connection
Male

Connector
Thread

Head Code
Hexagon

Size
M16X1.5LH

Color
Silver

Warranty
Yes

Flanged Thread Rotary Union Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Letter of Credit (L/C), Cash in Advance (CID), Cheque, Letter of Credit at Sight (Sight L/C)

Supply Ability
1000 Pieces Per Week

Delivery Time
4 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
Protective net + Poly Bag + Plastic box external covering

Main Export Market(s)
Eastern Europe, Western Europe, Africa, Asia, Central America

Main Domestic Market
All India

Certifications
ISO 9001 :2015 Certified Co. IATF-16949 Certified co.

About Flanged Thread Rotary Union

Flange Thread Type Rotary Union is precisely made and validated for last 28 years across India for various applications.

Heat treated aluminum anodized body and precisely well balanced stainless steel spindles ensures great performance and workmanship at any kind of work environment.

Flange Thread type rotary union is known for agile reversible spindle rotation which also avoids loosening, it is designed for achieving high flow rate requirement.

Super-precised lapped seal surfaces and its chemistry enhances the product life as well as leakage free performance. For longer life cycle J.K.Udyog deliberately using tungsten carbide to tungsten carbide sealing arrangement as our normal sealing arrangements.

Flatness of 2 Light band ensures the leakage free service life.

J.K.Udyog supplies well initialized rotary unions to start working immediately at the customer end.

Our well experienced engineering team are ready to cater any specific or specialized rotary applications right from Single-flow to 16 flow inlet to 16 flow outlet various needs of machining, metal cutting, work holding, indexing, rotating such simultaneous requirement in the machining industry. Hydraulic and Pneumatic work holding along with Air-seat arrangement are also available as per made to order basis.
