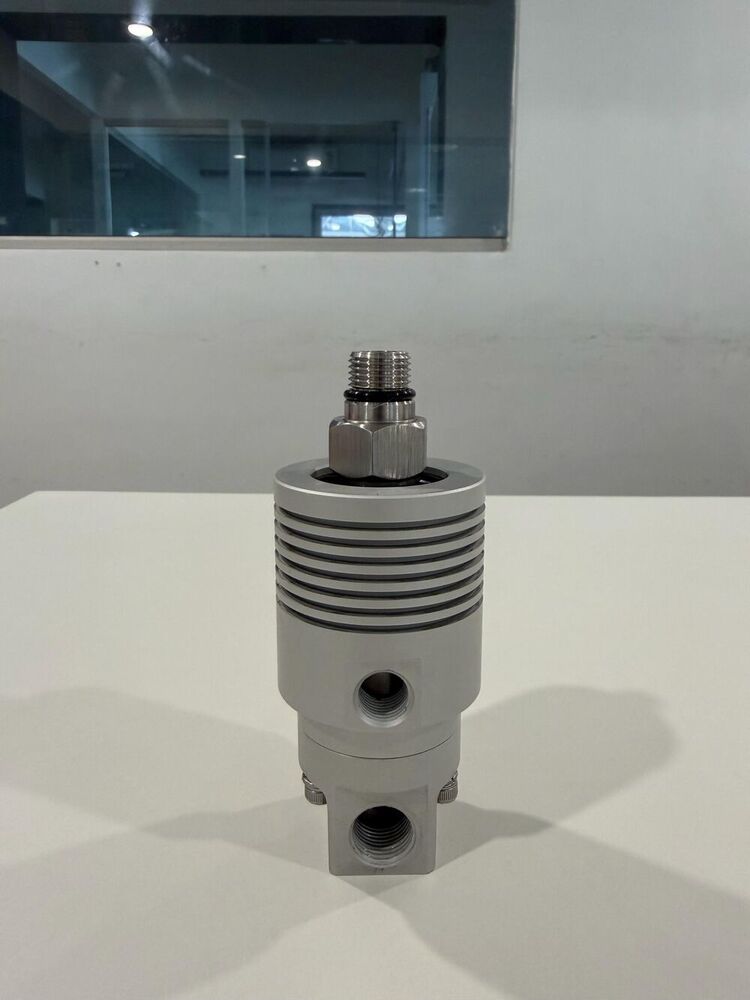

C-Type Rotary Union for VMC HMC

C-Type Rotary Union for VMC HMC Specification

Application
CNC spindle through coolant

Port Size
3/8" BSP/NPT

Material
Aluminum anodized body and SS Spindle

Corrosion Resistant
Non-Corrosive material

End Type
Spindle through coolant

Pressure Ratings
80 bar

Thread Type
M16X1.5 LH and others are available

Diameter
54 Millimeter (mm)

Features
10000 rpm

Material Grade
Aluminium

Usage
Machine tool Applications

Shape
Standard

Working Presssure
120

Surface Finish
ANODIZED

Connection Type
M16X1.5 LH and Others are also available

Capacity
10000 Tons/year

Dimension (L*W*H)
DIA 54X132 LONG Millimeter (mm)

Product Type
Precision Rotary Unions

Grade
Standard

Pressure
N/m2

Temperature
85 Celsius (oC)

Technics
Other

Connection
Male

Connector
Thread

Head Code
Hexagon

Size
M16X1.5 LH

Color
Silver

Warranty
Yes

Usage Application
Gas pipe, Pneumatic connections, Hydraulic pipe

C-Type Rotary Union for VMC HMC Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)

Supply Ability
1000 Per Month

Delivery Time
4 Week

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
Protective net + Poly Bag + Plastic box external covering

Main Export Market(s)
Western Europe, Africa, Asia, Central America, Eastern Europe

Main Domestic Market
All India

Certifications
ISO 9001 :2015 Certified Co. IATF-16949 Certified co.

About C-Type Rotary Union for VMC HMC

Rotary Union has been precisely made and validated for the last 28 years across India for various applications.

Heat-treated aluminium anodised body and precisely balanced stainless steel spindles ensure great performance and workmanship in any kind of work environment.

Super-precise lapped seal surfaces and its chemistry enhance the product life as well as leakage free performance. For longer life cycle J.K.Udyog deliberately using tungsten carbide to tungsten carbide sealing arrangement as our normal sealing arrangements.

Flatness of 2 Light band ensures the leakage free service life.

J.K.Udyog supplies well initialized rotary unions to start working immediately at the customer end.

Our well experienced engineering team are ready to cater any specific or specialized rotary applications right from Single-flow to 16 flow inlet to 16 flow outlet various needs of machining, metal cutting, work holding, indexing, rotating such simultaneous requirement in the machining industry. Hydraulic and Pneumatic work holding along with Air-seat arrangement are also available as per made to order basis.

J.K.Udyog manufactures CNC application rotary unions in different forms like C-type, CS-type{Specialized C type}, G-Type {Gun drill type} , BL-type {Bearing less type}, High flow type, Flanged spindle type, Duo-flow for other applications.
