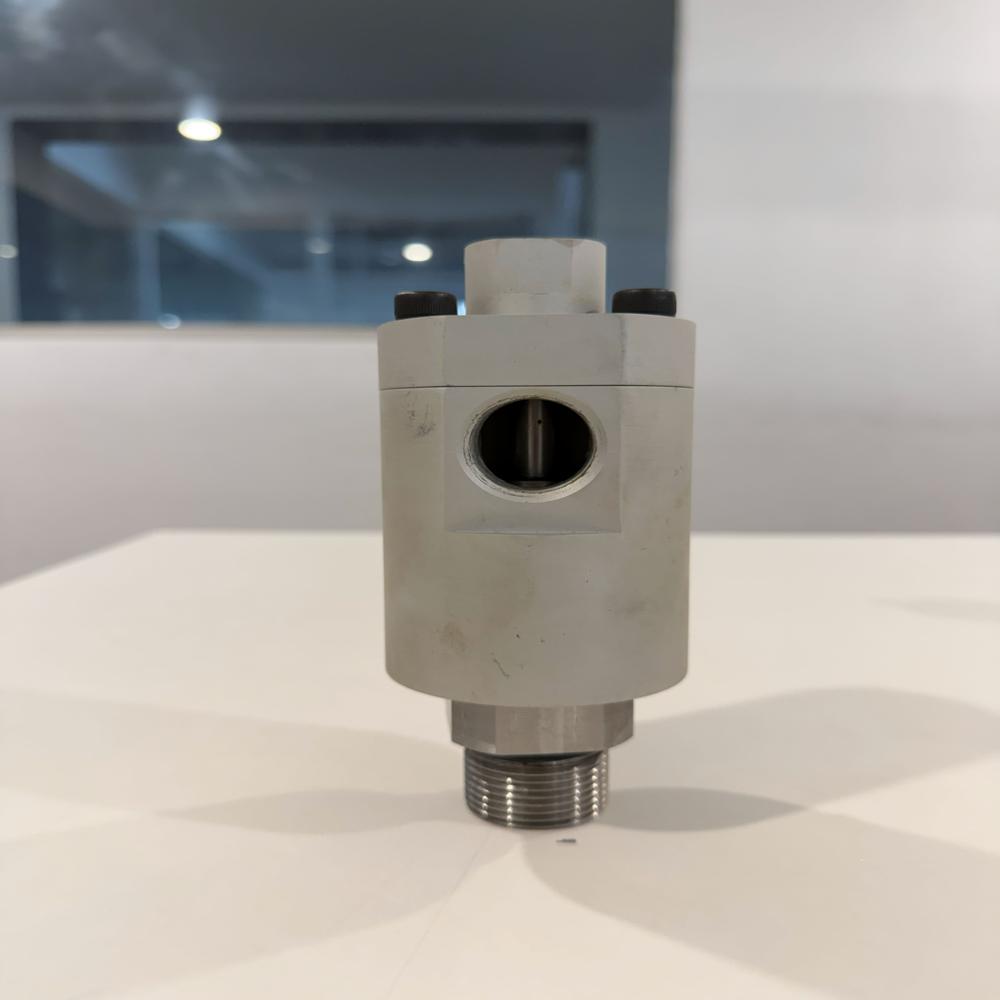

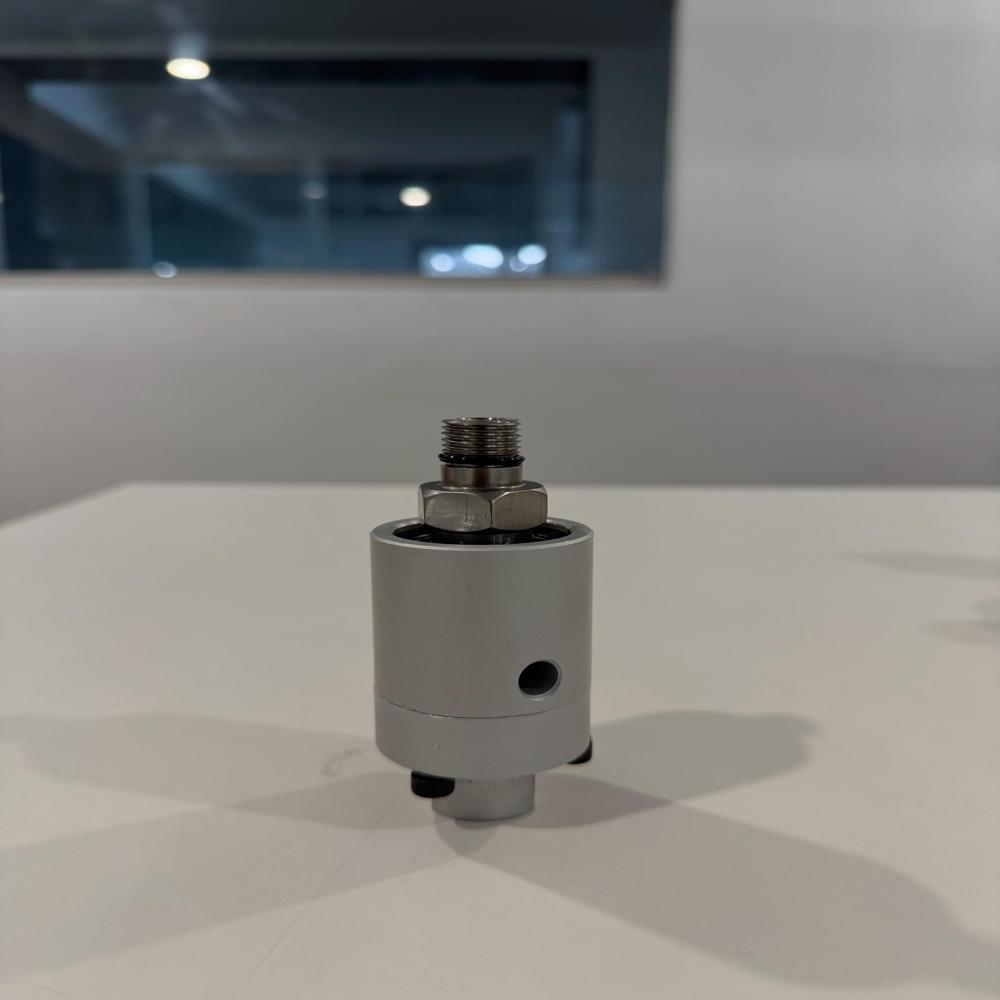

Gun Drill Type Rotary Union

Gun Drill Type Rotary Union Specification

End Type
High pressure coolant application

Thread Type
M16X1.5 LH and others are available

Pressure Ratings
80

Material
Aluminum anodized body

Capacity
10000 Tons/year

Usage
Machine tool Applications

Dimension (L*W*H)
DIA 54X132 LONG Millimeter (mm)

Fittings
Elbows, Couplings, Flanges

Corrosion Resistant
Non-Corrosive Material

Features
6000 rpm to 16000 rpm

Application
High Pressure coolant application

Diameter
18 Millimeter (mm)

Material Grade
Aluminium

Surface Finish
White anodized

Port Size
3/8" BSP/NPT

Shape
Standard

Connection Type
M16X1.5 LH and Others are also available

Working Presssure
105

Product Type
Precision Rotary Unions

Grade
Standard

Pressure
N/m2

Temperature
85 Celsius (oC)

Technics
Other

Connection
Male

Connector
Thread

Head Code
Hexagon

Size
M16X1.5LH

Color
Silver

Warranty
Yes

Usage Application
Pneumatic connections, Hydraulic pipe, Gas pipe

Gun Drill Type Rotary Union Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cheque, Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C), Cash in Advance (CID)

Supply Ability
1000 Units Per Month

Delivery Time
4 Week

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
Protective net + Poly Bag + Plastic box external covering

Main Export Market(s)
Eastern Europe, Western Europe, Asia, Central America, Africa

Main Domestic Market
All India

Certifications
ISO 9001 :2015 Certified Co. IATF-16949 Certified co.

About Gun Drill Type Rotary Union

Rotary Union Gun Drill type is precisely made origin year 1997 and validated for last 28 years across India for various applications.

Heat treated aluminum,(white) anodized body and precisely well balanced stainless steel spindles ensures great performance and workmanship at any kind of work environment.

Gun Drill type is solely made for High pressure coolant applications for easy chip flow, it is enabled for fast dissipation of heat.

Maximum Pressure-10000 rpm

Super-precised lapped seal surfaces and its chemistry enhances the product life as well as leakage free performance. For longer life cycle J.K.Udyog deliberately using tungsten carbide to tungsten carbide sealing arrangement as our normal sealing arrangements.

Flatness of 2 Light band ensures the leakage free service life.

J.K.Udyog supplies well initialized rotary unions to start working immediately at the customer end.

Our well experienced engineering team are ready to cater any specific or specialized rotary applications right from Single-flow to 16 flow inlet to 16 flow outlet various needs of machining, metal cutting, work holding, indexing, rotating such simultaneous requirement in the machining industry. Hydraulic and Pneumatic work holding along with Air-seat arrangement are also available as per made to order basis.
