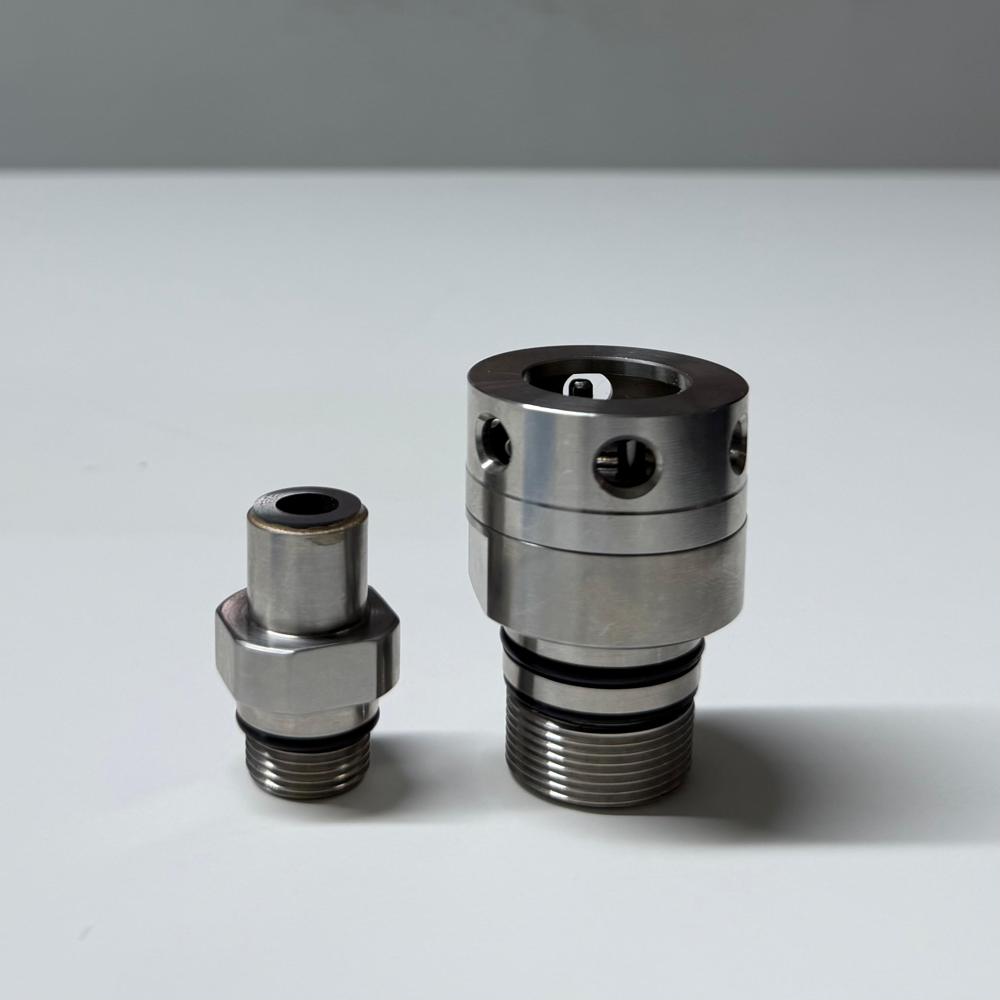

Bearing Less Rotary Union

Bearing Less Rotary Union Specification

Capacity
10000 Tons/year

Pressure Ratings
120 to 140 bar

Diameter
54 Millimeter (mm)

Corrosion Resistant
Non-Corrosive Material

Shape
Standard

Dimension (L*W*H)
DIA 54X132 LONG Millimeter (mm)

Connection Type
M16X1.5 LH and Others are also available

End Type
Spindle through coolant

Application
CNC spindle through coolant

Material
Steel Body

Material Grade
Aluminium

Port Size
3/8

Thread Type
M16X1.5 LH and others are available

Features
High RPM 24,000 to 40,000 RPM

Usage
Machine tool Applications

Working Presssure
140 bar

Surface Finish
Anodized

Product Type
Precision Rotary Unions

Grade
Standard

Pressure
H N/m2

Temperature
105 Celsius (oC)

Technics
Other

Connection
Male

Connector
Thread

Head Code
Hexagon

Size
M16X1.5LH

Color
Silver

Warranty
Yes

Usage Application
Pneumatic connections, Hydraulic pipe, Gas pipe

Bearing Less Rotary Union Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1000 Pieces Per Month

Delivery Time
4 Week

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
Protective net + Poly Bag + Plastic box external covering

Main Export Market(s)
Africa, Asia, Central America, Eastern Europe, Western Europe

Main Domestic Market
All India

Certifications
ISO 9001 :2015 Certified Co. IATF-16949 Certified co.

About Bearing Less Rotary Union

The Rotary Union Bearing less type is precisely manufactured and has been validated over the last 9 years across India for various applications.

Heat-treated aluminium anodised body and precisely balanced stainless steel spindles ensure great performance and workmanship in any kind of work environment.

Bearing less rotary union is known for its cutting-edge technology, achieving the lowest vibration on the spindle with high rpm and pressure; in this type, simultaneous applications are possible.

Super-precise lapped seal surfaces and their chemistry enhance the product life as well as leakage-free performance. For a longer life cycle, J.K.Udyog deliberately uses tungsten carbide to tungsten carbide sealing arrangements as our normal sealing arrangements.

Flatness of 2 Light band ensures a leakage-free service life.

J.K.Udyog supplies well-initialised rotary unions to start working immediately at the customer end.
